M100
SUPER |
|
The compression chamber is of fixed type. The wrapping and compression system consists of drive chains and cross bars and enables the packaging of all types of green or dry crop.
An alternative high-performance packer device gently feeds the crops to best preserve the nutrients. The mechanical closure of the gate and easy, flexible compression control make it possible to obtain the required density which, if necessary, can be very high and higher even than that of other machines in the same category.
The compactness, relative lightness, limited drive power and production of small bales (ø 100 x 100 cm) that are easier to handle and store, make this machine perfect for use in mountain areas and in restricted areas in general. The machine can also be used for wrapping vine cuttings if fitted with the special "vine cutting kit".
An automatic monotwine binder, a double twine binder and a net binder are available.
The machine can be supplied in the version "MAGNUM" equipped with an extra wide pick-up with feed augers at the sides. |
|
|
Technical
specifications |
UNIT |
M100
SUPER |
M100
MAGNUM |
M100(4)
SUPER L
|
M100(4)
MAGNUM L |
| Bale size |
inches
cm |
Ø 39.3 x 39.3
Ø
100 x 100 |
Ø 39.3 x 39.3
Ø
100 x 100 |
Ø 39.3 x 47.3
Ø
100 x 120 |
Ø 39.3 x 47.3
Ø
100 x 120 |
| Pick-up width |
inches
cm |
57
145 |
64.9
165 |
64.9
165 |
72.8
185 |
| Chain shafts |
no. |
27 |
27 |
27 |
27 |
| P.T.O. |
Rpm |
540 |
540 |
540 |
540 |
| Required power |
CV |
40/45 |
40/45 |
40/45 |
40/45 |
Dimensions
(W x L x H) |
inches
cm |
70.8 [76.7](1) x 118.8 x 69.7
180 [195](1) x 302 x 177 |
88.5 x 118.8 x 69.7
225 x 302 x 177 |
84.6 x 118.8 x 69.7
215 x 302 x 177 |
96.5 x 118.8 x 69.7
245 x 302 x 177 |
| Weight |
lb.(3)
Kg (3) |
3490
1590 |
3636
1650 |
3636
1650 |
3814
1730 |
| Tyres |
|
7.50-16 o
11.5-80/15 |
11.5-80/15 |
11.5-80/15 |
11.5-80/15 |
| (1) With tyres of type 11.5-80/15 |
(2) Available on request: 200 cm |
(3) Approximate weight data |
(4) Machinery made to order |
|
|
 |
|
|
|
 |
|
|
|

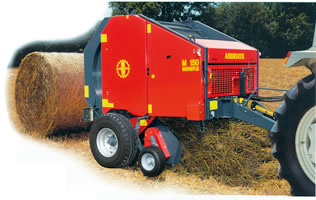

M150
SUPER PLUS |
|
M150
MAGNUM PLUS |
|
The compression chamber is of fixed type. The wrapping and compression system consists of drive chains and cross bars and enables the packaging of all types of green or dry crop.
An alternative high-performance packer device gently feeds the crops to best preserve the nutrients. The exclusive mechanical closure of the gate and easy, flexible compression control make it possible to obtain the required density which, if necessary, can be very high and higher even than that of other machines in the same category.
The strength, low running and maintenance costs, ease of use, versatility and high performance make this machine highly competitive in terms of quality/performance/price.
An automatic monotwine binder, a double twine binder, a double binder with crossed twine, and a net binder are available.
The machine can be supplied in the version "MAGNUM" equipped with an extra wide pick-up with feed augers at the sides. |
|
|
Technical
specifications |
UNIT |
M120
COMPACT
PLUS |
M120
COMPACT
MAGNUM
PLUS |
M120
SUPER
PLUS |
M120
MAGNUM
PLUS |
M150
SUPER
PLUS |
M150
MAGNUM
PLUS |
| Bale size |
inches
cm |
Ø 47.3 x 39.3
Ø
120 x 100 |
Ø 47.3 x 39.3
Ø
120 x 100 |
Ø 47.3 x 47.3
Ø
120 x 120 |
Ø 47.3 x 47.3
Ø
120 x 120 |
Ø 59 x 47.3
Ø
150 x 120 |
Ø 59 x 47.3
Ø
150 x 120 |
| Pick-up width |
inches
cm |
57
145 |
64.9
165 |
64.9
165 |
72.8(2)
185(2) |
64.9
165 |
72.8(2)
185(2) |
| Chain shafts |
no. |
31 |
31 |
31 |
31 |
41 |
41 |
| P.T.O. |
Rpm |
540 |
540 |
540 |
540 |
540 |
540 |
| Required power |
CV |
40/45 |
50 |
50 |
60 |
50 |
60 |
Dimensions
(W x L x H) |
inches
cm |
70.8 x 129.9 x 72.8
180 x 330 x 185 |
88.5 x 129.9 x 72.8
225 x 330 x 185 |
84.6 x 129.9 x 72.8
215 x 330 x 185 |
96.5 x 129.9 x 77.5
245 x 330 x 197 |
84.6 x 140.5 x 86.6
215 x 357 x 220 |
96.5 x 140.5 x 91.3
245 x 357 x 232 |
| Weight |
lb.(3)
Kg (3) |
3636
1650 |
3792
1720 |
4077
1850 |
4859
2200 |
4628
2100 |
5401
2450 |
| Tyres |
|
7.50-16 |
11.5-80/15 |
11.5-80/15 |
11.5-80/15 |
11.5-80/15 |
11.5-80/15 |
| (1) With tyres of type 11.5-80/15 |
(2) Available on request: 200 cm |
(3) Approximate weight data |
(4) Machinery made to order |
| |
|
|
|
|
| M120
SUPER |
|
M120
MAGNUM |
 |
|
 |
| |
| M150
SUPER |
|
M150
MAGNUM PLUS |
 |
|
 |
|
|
|
